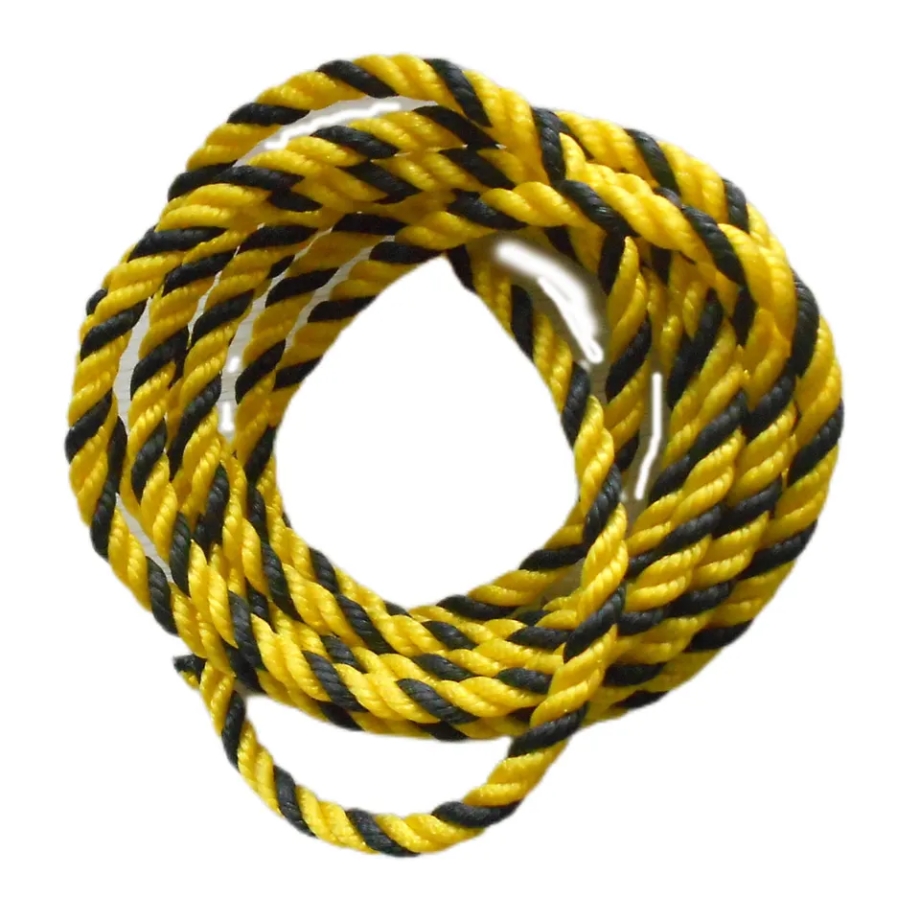

3 Kollu Tiger Halat



Teklif İsteyin

Dia. / mm Dia./ inch Cir / inch Wt. Per 220 Mtrs. in Kgs. Wt. Per 200 Mtrs. in Kgs. Wt. Per Wt. Per 220 Mtrs. in Lbs Wt. Per 200 Mtrs. in Lbs Mtr/ Kg Feet/ Kg MBL / kgf MBL / LBs MBL / KN Maximum Length Mtr.
6 1/4 45019 3.67 3.34 8.07 7.34 59.95 196.62 770 1694 7.55 500
8 5/16 1 6.60 6 14.52 13.20 33.33 109.33 1345 2959 13.19 650
10 3/8 1-1/4 10 9.09 22.00 20 22.00 72.16 2000 4400 19.61 500
12 1/2 1-1/2 14.50 13.18 31.90 29 15.17 49.77 2840 6248 27.84 365
14 9/16 1-3/4 20 18.18 44.00 30 11.00 36.08 3905 8591 38.28 2000
16 5/8 2 25.5 23.18 56.10 51 8.63 28.30 4900 10780 48.04 1550
18 3/4 2-1/4 32.5 .29.55 71.50 65 06.77 22.20 5500 12100 53.92 1200
20 13/16 2-1/2 40 36.36 88.00 80 5,5 18.04 7520 16544 73.73 1000
22 7/8 2-3/4 48.5 44.09 106.70 97 4,54 14.88 8450 18590 82.84 800
24 1 3 57 51.82 125.40 144 3,86 12.66 10200 22440 100.00 950
26 1-1/13 3-1/4 67 61.45 148.72 135 3,25 10,67 11870 26114 116.37 800
28 1-1/8 3-1/2 78 70.91 171.60 156 2,82 9,25 13540 29788 132.75 700
30 1-1/4 3-3/4 90 81.82 198.00 180 2,44 8,02 15482 34060 151.78 600
32 1-5/16 4 101 91.82 222.20 202 2,18 7.14 17425 38335 170.83 550
34 1-3/8 4-1/4 115 105.09 254.32 231 1,9 6.24 19262 42376 188.84 500
36 1-7/16 4-1/2 129 117.2 283.80 258 1,71 5.59 21100 46420 206.86 450
40 1-5/8 5 158 143.64 347.60 316 1,39 4.57 24980 54956 244.90 350
44 1-3/4 5-1/5 193 175.91 425.70 387 1,14 3.73 30165 66363 295.74 850
48 1-15/16 6 229 175.91 503.80 458 0,96 3.15 35350 77770 346.57 750
52 2-1/16 6-1/2 268 208.18 589.60 536 0,81 2.67 43400 95480 425.49 650
56 2-1/4 7 312 243.64 686.40 624 0,71 2.31 49400 108680 484.31 600
60 2-3/8 7-1/2 358 283.64 787.60 716 0,61 2.01 56200 123640 550.98 500
64 2-1/2 8 407 325.45 895.40 814 0,54 1.77 64100 141020 628.43 450
68 2-15/16 8-1/2 460 370.0 1012.00 920 0,48 1.57 72200 158840 707.84 400
70 2-3/4 8-11/16 486 418.18 1069.20 972 0,45 1.48 76200 167640 747.06 365
72 2-7/8 9 514 441.82 1130.80 1028 0,43 1.40 80200 176440 747.06 350
76,00 3 9-1/2 574 467.27 1262.80 1148 0,38 1.26 89300 196460 875.49 350
80,00 3-5/32 10 638 521.82 1403.60 1276 0,34 1.13 98400 216480 964.71 280
84,00 3-1/2 10-1/2 705 580.00 1551.00 1410 0,31 1.03 108300 238260 1061.76 250
88,00 3-15/16 11 772 640.91 1698.40 1544 0,26 0.85 118700 261140 1163.73 220
96,00 3-3/4 12 917 701.82 2017.40 1834 0,24 0.79 140600 309320 1378.43 200
100,00 4 12-1/2 994 833.64 2186.80 1988 0,22 0.72 151200 332640 1482.35 183
