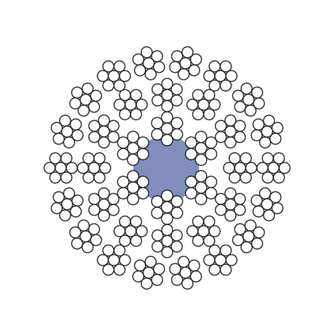

Drako HR 240



rope Ø / mm unit mass / kg-100m min aggregate breaking force [kN] tensile grade / 1570 N/nm2 min aggregate breaking force [kN] tensile grade / 1770 N/nm2 min aggregate breaking force [kN] tensile grade / 1960 N/nm2
28 309 517 582 645
30 355 593 669 741
32 403 675 761 843
34 455 762 859 952
36 511 855 963 1087
38 569 952 1073 1189
40 630 1055 1189 1317
42 695 1163 1311 1452
44 763 1277 1439 1594
46 834 1395 1573 1742
48 908 1519 1713 1897
50 985 1646 1859 2058
52 1055 1783 2010 2226
54 1149 1923 2168 2400
56 1236 2068 2331 2582
58 1325 2218 2501 2769
60 1418 2374 2676 2964
62 1515 2535 2858 3164
64 1614 2701 3045 3372
66 1716 2872 3238 2586
68 1822 3049 3437 3806
70 1930 3231 3643 4033
