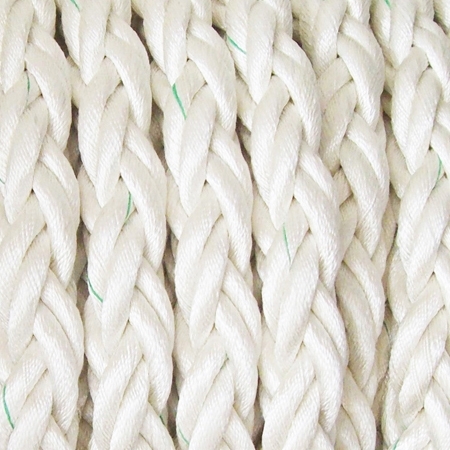

Polyamide / Nylon Rope - 12 Strand



Teklif İsteyin

Dia. mm Dia. Inch Cir. inch Wt.Per 220 Mtrs. in Kgs. Wt Per 200 Mtrs. in Kgs. Wt.Per 220 Mtrs. in Lbs. Wt.Per 200 Mtrs. in Lbs. Mtr/kg Feet/kg MBL / kgf MBL / Lbs MBL / KN Maximum Length Mtr.
52 2-1/16 6-1/2 387 351.82 851 773.64 0.57 1.86 54000 118800 529.41 650
56 2-1/4 7 449 408.18 988 898.18 0.49 1.61 61200 134640 600 550
60 2-3/8 7-1/2 512 465.45 1126 1023.64 0.43 1.41 70400 154880 690.20 500
64 2-1/2 8 579 526.36 1274 1158.18 0.38 1.25 79200 174240 776.47 450
68 2-15/16 8-1/2 666 605.45 1465 1331.82 0.33 1.08 89000 195800 872.55 400
72 2-7/8 9 739 671.82 1626 1478.18 0.30 0.98 98900 217580 969.61 350
76 3 9-1/2 822 747.27 1808 1643.64 0.27 0.88 110000 242000 1078.43 300
80 3-5/32 10 913 830 2009 1826.36 0.24 0.79 121000 266200 1186.27 300
84 3-1/2 10-1/2 1000 909.09 2200 2000 0.22 0.72 132000 290400 1294.12 250
88 3-7/16 11 1100 1000 2420 2200 0.20 0.66 144100 317020 1412.75 220
92 3-7/8 11-1/2 1110 1009.09 2686 2441.82 0.20 0.65 157000 345400 1539.22 220
96 3-13/16 12 1339 1217 2945 2677 0.16 0.52 169000 371800 1656.86 220
100 3-15/16 12-3/8 1420 1290.91 3124 2840 0.15 0.49 176000 387200 1725.49 220
104 4-1/2 13 - 1400 - 3080 0.14 0.45 181300 398860 1777.45 200
112 1-7/8 14 - 1304 - 2868 0.12 0.39 208000 457600 2039.22 160
120 5 15 - 1403 - 3086 0.10 0.32 238075 523767 2334.08 150
