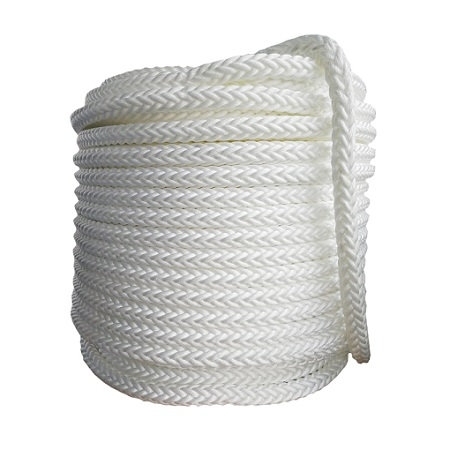

Super Flex - 12 Strand



Teklif İsteyin

Dia. mm Dia. Inch Cir. inch Wt.Per 220 Mtrs. in Kgs. Wt Per 200 Mtrs. in Kgs. Wt.Per 220 Mtrs. in Lbs. Wt.Per 200 Mtrs. in Lbs. Mtr/kg Feet/kg MBL / kgf MBL / Lbs MBL / KN Maximum Length Mtr.
52 2-1/16 6-1/2 327 297.27 719.40 654 0.67 2.21 64300 141460 630 800
56 2-1/4 7 371 337.27 816.20 742 0.59 1.95 72800 160160 714 700
60 2-3/8 7-1/2 417 379.09 917.40 834 0.53 1.73 81200 178640 796 600
64 2-1/2 8 463 420.91 1018.60 926 0.48 1.56 90400 198880 886 500
68 2-15/16 8-1/2 540 490.91 1188 1080 0.41 1.34 104100 229020 1021 490
72 2-7/8 9 586 532.73 1289.20 1172 0.38 1.23 113100 248820 1109 450
76 3 9-1/2 692 629.09 1522.40 1384 0.32 1.04 134100 295020 1315 380
80 3-1/4 10 765 695.45 1683 1530 0.29 0.94 148100 325820 1452 340
88 3-15/16 11 912 829.09 2006.40 1824 0.24 0.79 175100 385220 1717 275
96 3-3/4 12 1075 977.27 2365 2150 0.20 0.67 205100 451220 2011 240
104 4-1/2 13 1237 1124.55 2721.40 2474 0.18 0.58 235100 517220 2305 220
112 1-7/8 14 - 1310 - 2882 0.15 0.49 268000 589600 2627 200
120 5 15 - 1350 - 2970 0.13 0.42 307500 676500 3014 180
